S.J. Design Inc. is the proud Canadian distributor of the Quietite™ Wedging Ball Mount.

Rocky Mountain Hitch has developed a revolutionary design for Hitch Receiver cargo carriers, motorcycle carriers, and ball mounts. This unique design is based upon their Quietite Wedging Shank. It completely eliminates that annoying looseness, rattling, rocking, and instability between the vehicle’s hitch receiver and the cargo carrier, motorcycle carrier, or ball mount.

How the Quietite  Wedging Shank Works

When a ball mount or carrier shank is inserted into a receiver there is a gap between the surfaces, which allows the ball mount to be loose and rattle. Rocky Mountain Hitch’s Quietite Wedging Shank design completely eliminates this annoying rattling. The Quietite Wedging Shank uses a tightening bolt system that forces all four surfaces of the shank to press firmly against the four inside surfaces of the mating receiver, thus eliminating the gap and ensuring a quiet and tight ball mount or carrier.

The Ball Mounts are rated to a load capacity of up to 7500 GVWR in accordance with SAE J684. If you are using hitch mounted mud flaps that attach to a ball mount, the Quietite Wedging Ball Mount will completely stabilize the mud flaps, stopping them from rocking and moving around.

Products

 SBM-7.5K-2-P-PC

SBM-7.5K-2-P-PC

  •  Single Ball Mount with the QUIETITE™ Wedging Shank
  • 7,500 / 750 lb. GVWR / TW, per SAE J684 / V-5
  • Fits into a 2” hitch receiver
  • 2” Drop
  • Powder Coated
  • With Pin & Clip
  • Eliminates looseness and instability between the receiver and ball mount shank
  • Stabilizes hitch mounted mud flaps

$39.99

 SBM-7.5K-3L-2-P-PC

SBM-7.5K-3L-2-P-PC

  • Single Ball Mount with the QUIETITE™ Wedging Shank
  • 7,500 / 750 lb. GVWR / TW, per SAE J684 / V-5
  • 1” Longer Shank for some hitch mounted mud flaps
  • Fits into a 2” hitch receiver
  • 2” Drop
  • Powder Coated
  • With Pin & Clip
  • Eliminates looseness and instability between the receiver and ball mount shank
  • Stabilizes hitch mounted mud flaps

$45.99

 SBM-K-7.5K-2-P-PC

SBM-K-7.5K-2-P-PC

  • Single Ball Mount with the QUIETITE™ Wedging Shank
  • 7,500 / 750 lb. GVWR / TW, per SAE J684 / V-5
  • Fits into a 2” hitch receiver
  • 2” Drop
  • 2” Diameter Chrome Plated Ball
  • Powder Coated
  • With Pin & Clip
  • Eliminates looseness and instability between the receiver and ball mount shank
  • Stabilizes hitch mounted mud flaps

$51.79

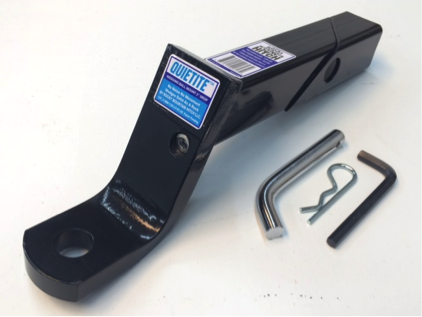

 SBM-5K-4-P-PC

SBM-5K-4-P-PC

  • Single Ball Mount with the QUIETITE™ Wedging Shank
  • 5000 / 500 lb. GVWR / TW, per SAE J684 / V-5
  • Fits into a 2” hitch receiver
  • 4” Drop
  • Powder Coated
  • With Pin & Clip
  • Eliminates looseness and instability between the receiver and ball mount shank
  • Stabilizes hitch mounted mud flaps

$29.90

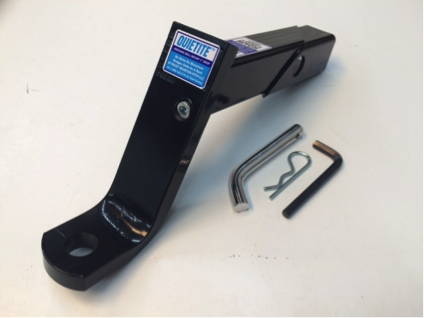

 SBM-5K-6-P-PC

SBM-5K-6-P-PC

  • Single Ball Mount with the QUIETITE™ Wedging Shank
  • 5000 / 500 lb. GVWR / TW, per SAE J684 / V-5
  • Fits into a 2” hitch receiver
  • 6” Drop
  • Powder Coated
  • With Pin & Clip
  • Eliminates looseness and instability between the receiver and ball mount shank
  • Stabilizes hitch mounted mud flaps

$46.97

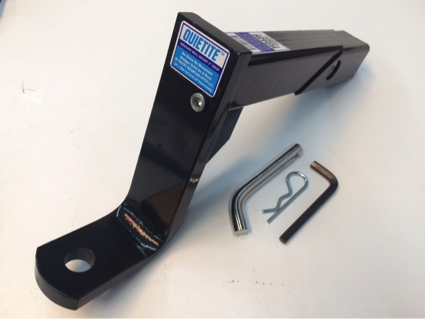

 SBM-5K-8-P-PC

SBM-5K-8-P-PC

  • Single Ball Mount with the QUIETITE™ Wedging Shank
  • 5000 / 500 lb. GVWR / TW, per SAE J684 / V-5
  • Fits into a 2” hitch receiver
  • 8” Drop
  • Powder Coated
  • With Pin & Clip
  • Eliminates looseness and instability between the receiver and ball mount shank
  • Stabilizes hitch mounted mud flaps

$52.46

 TBM-VAR-0-P-PC

TBM-VAR-0-P-PC

  • Tri Ball Mount with the QUIETITE™ Wedging Shank
  • Variable load ratings depending on the ball size
  • Fits into a 2” hitch receiver
  • 1 7/8”, 2”, & 2 5/16” Balls
  • Powder Coated
  • With Pin & Clip
  • Eliminates looseness and instability between the receiver and ball mount shank
  • Stabilizes hitch mounted mud flaps

$76.08

  • Folding Cargo Carrier with the QUIETITE™ Wedging Shank
  • Fits into a 2” hitch receiver
  • 59” x 20” Storage Space
  • Up to 500 lb. Load Capacity
  • Eliminates looseness and instability between the receiver and carrier shank
non folding.png
  • Non-folding Cargo Carrier with the QUIETITE™ Wedging Shank
  • Fits into a 2” hitch receiver
  • 59” x 20” Storage Space
  • Up to 500 lb. Load Capacity
  • Eliminates looseness and instability between the receiver and carrier shank
